MSP-ZEW

MSP-ZEW for Extraction of Nucleic Acids

Examiner: RDXXX /RDXXX in R&D department; 2016.10.14~10.18; Shanghai Laboratory

1. Examination systems

Clinical specimens: cervical exfoliated cells, a total of four samples

Group B: Dynabeads Myone Magnetic Particles Silane

Group A: centrifuge extraction; Group C: MSP-ZEWB

Methods: the standard protocol for qPCR and nucleic acid extraction

Batches: a total of three batches of MSP-ZEWB tested

2. Results

Part A. extraction efficacy of nucleic acids

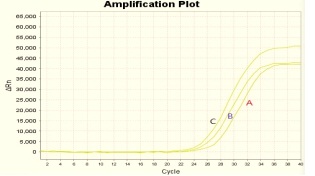

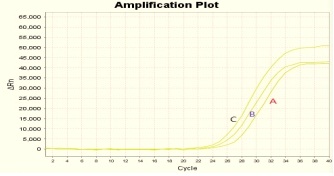

 Sample 1                                                                                            Sample 2

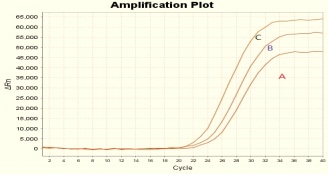

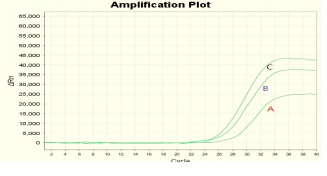

            Sample 3                                                                                      Sample 4

Part B: reproducibility of the sample MSP-ZEWB

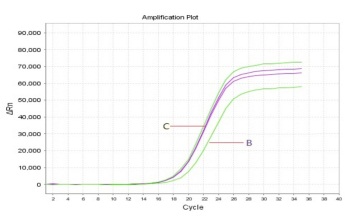

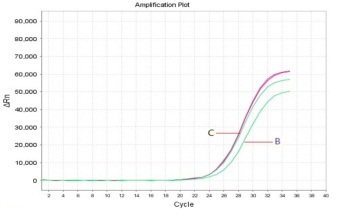

             Sample 1                                                                                       Sample 2

3. Conclusion

[c1]. MSP-ZEWB had higher efficacy to extract nucleic acids than Dynabeads Myone   Magnetic Particle Silane, both of which were better than the centrifuge extraction.

[c2]. The three batches of MSP-ZEWB gave Ct with CV <5%.

[c3]. MSP-ZEWB has promise for the extraction of nucleic acids in clinical specimens
